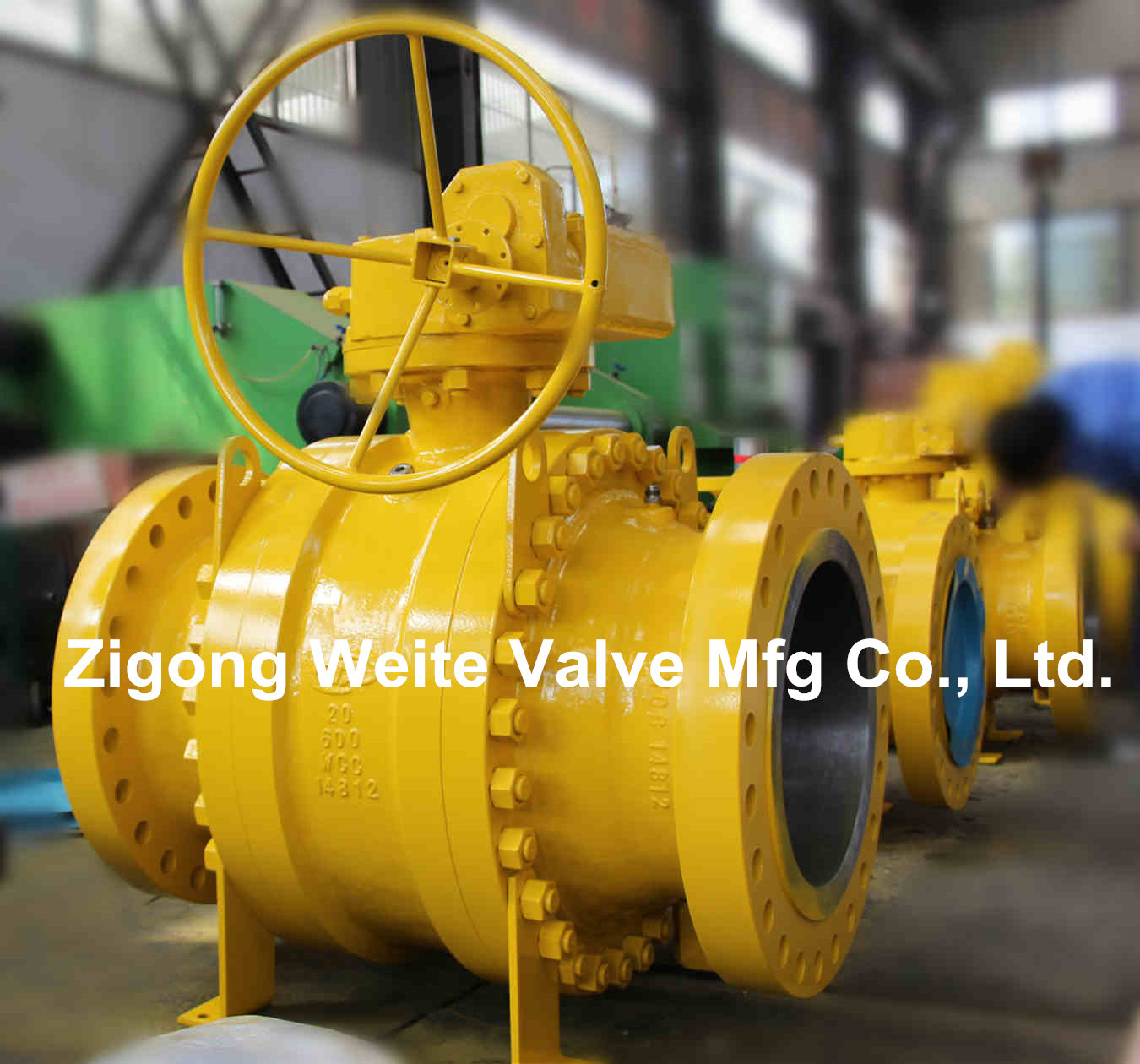

Big Size 20'' 600LB Gear Box Operated Ball Valve Trunnion Mounted Carbon Steel WCC
Design and Manufacturing Specification
| Design Specification | API 6D,ASME16.34 ,BS5351,ISO17292,DIN |
| Butt Welding | ANSI B16.25,ASME B 31.8,ASME B31.4 |
| Actuator | Gear Box |
| Material | Carbon Steel Series |
| Inspection & Testing | API 6D , API 598 |
| Gasket | ASME B 16.20 |
| Bolt & Nut | A193-B7,A194-2H / A193-B7M,A194-8M |
Feature
Blow Out Proof Stem Construction
The lower end of stem is terraced and installed from inside of the valve body. This construction insures a
blow out proof stem and metal to metal seal in case of fire.
Anti-static Design
During the trunnion mounted ball valve operation, the static electricity will generate by the friction between
ball and soft seal seat,to avoid electrostatic snark the anti-static device be designed in the valve the device
will conduct out the static electricity.
Middle Flange with No Leakage Design
Body and Cap connection are sealed by gaskets. To prevent leakage from fire, high temperature
or vibrations, metal to metal sealing between the body and cap is good effect.
Locking Device
The valve is equipped with locking holes for the lever in the full open and full closed position to
prevent accidental while opening and closing.
FireSafe Design Meet API607/API6FA Standard
In case of non-metal seat be melt or damaged under fire or in abnormal rising temperature, the specially
designed seat ring seal lip with the spring loading force will form a metal to metal contact with the ball instantly.
Double Block and Bleed(DBB)
It means the cavity pressure can be vented either in fully open or closed position.
Advanced and Exclusive Seat Design
The cone sealing surface developed, makes the more reliable sealing. Our designs are available
with various types of seat materials can offer low friction and low operational torque.
Company Profile
Zigong Weite Valve Mfg Co., Ltd. was established in 2007,which is a manufacturer specializing in the production of valves,
Selling Various ball valves.Our production range DN 1/2”—40”(DN15-1000mm),PN Class 150 -- Class2500 (1MPa - 42MPa).
Working temperature -196°C~680°C.
Our R&D team consists of experienced superior valve experts and engineers
that can according to customers’ requirement for OEM and ODM.
Most important that we strictly enforces the quality control of ISO9001 ,
API6D, ASME, B16.34, API608, BS5351, ISO17292, DIN etc.
Our products can widely use in the industry of Petroleum, Natural gas,
Chemical, Light, Ore pulp, Electrical, Food, Metallurgy,
Coal-to-liquids, long distance pipeline and various industrial facilities.
FAQ:
Q1:Are you a Manufacture or trading company?
A: We are a professional Manufacture factory, we have been in Valve field more than 15 years.
Our factory is located in Zigong City, Sichuan Province.
Q2: What’s your MOQ?
A:1 Set.
Q3:Can you provide OEM and customized product?
A: Yes, we can.
Q4:Do you offer guarantee for the products?
A:Yes, we offer 1 year warranty to our products.
Q5:Why Choose Weite Valve?
A:1. We are manufactory, we can provide cost effective products.
2. We have 15years experience in valve industrial, both our sales team and technical engineers
can provide you professional solution.
Product Tags:
|
|

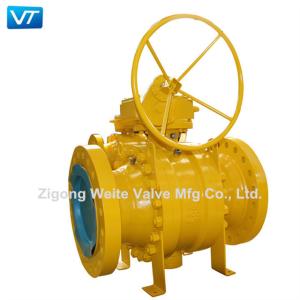

20" 600LB Gearbox Ball Valve Images
|
